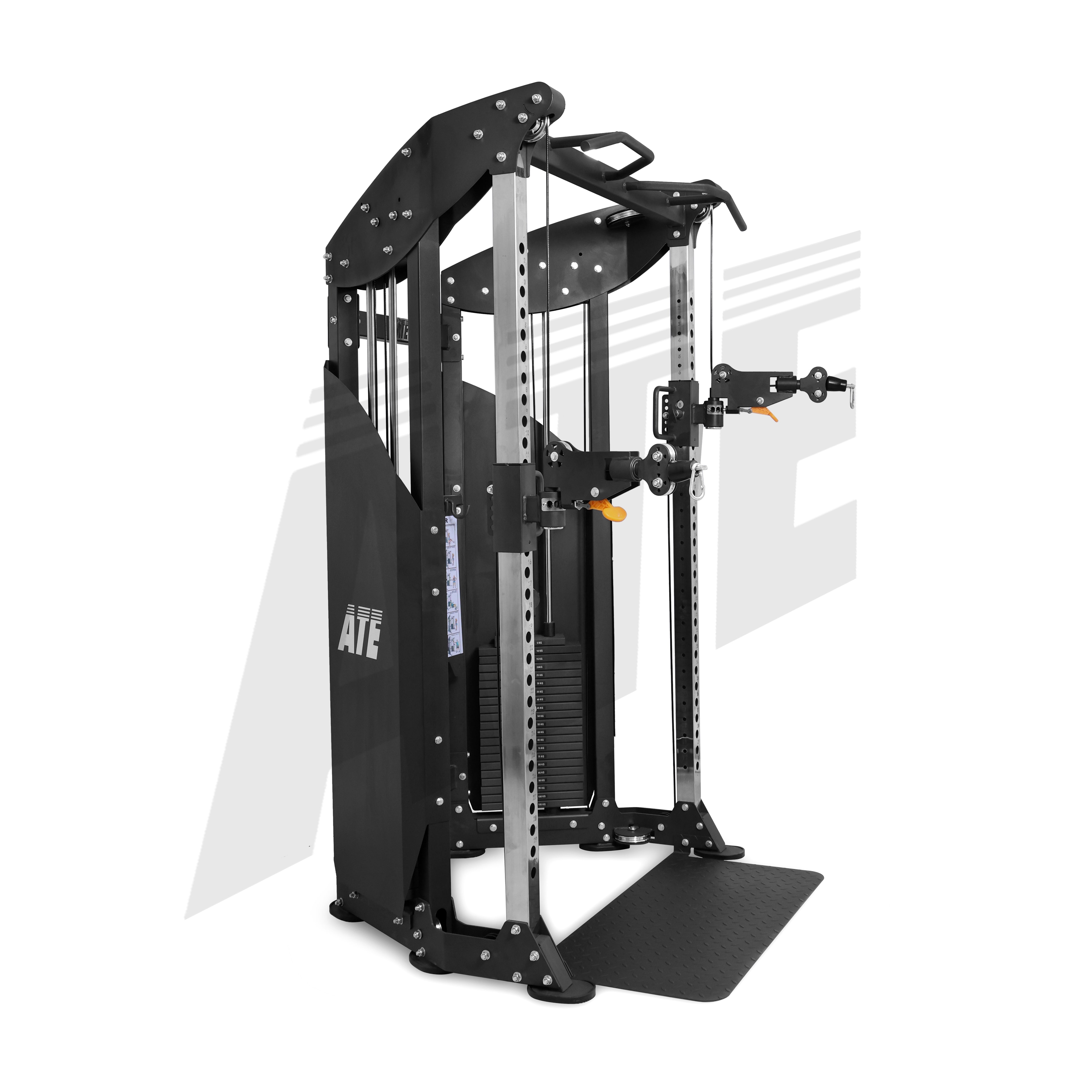

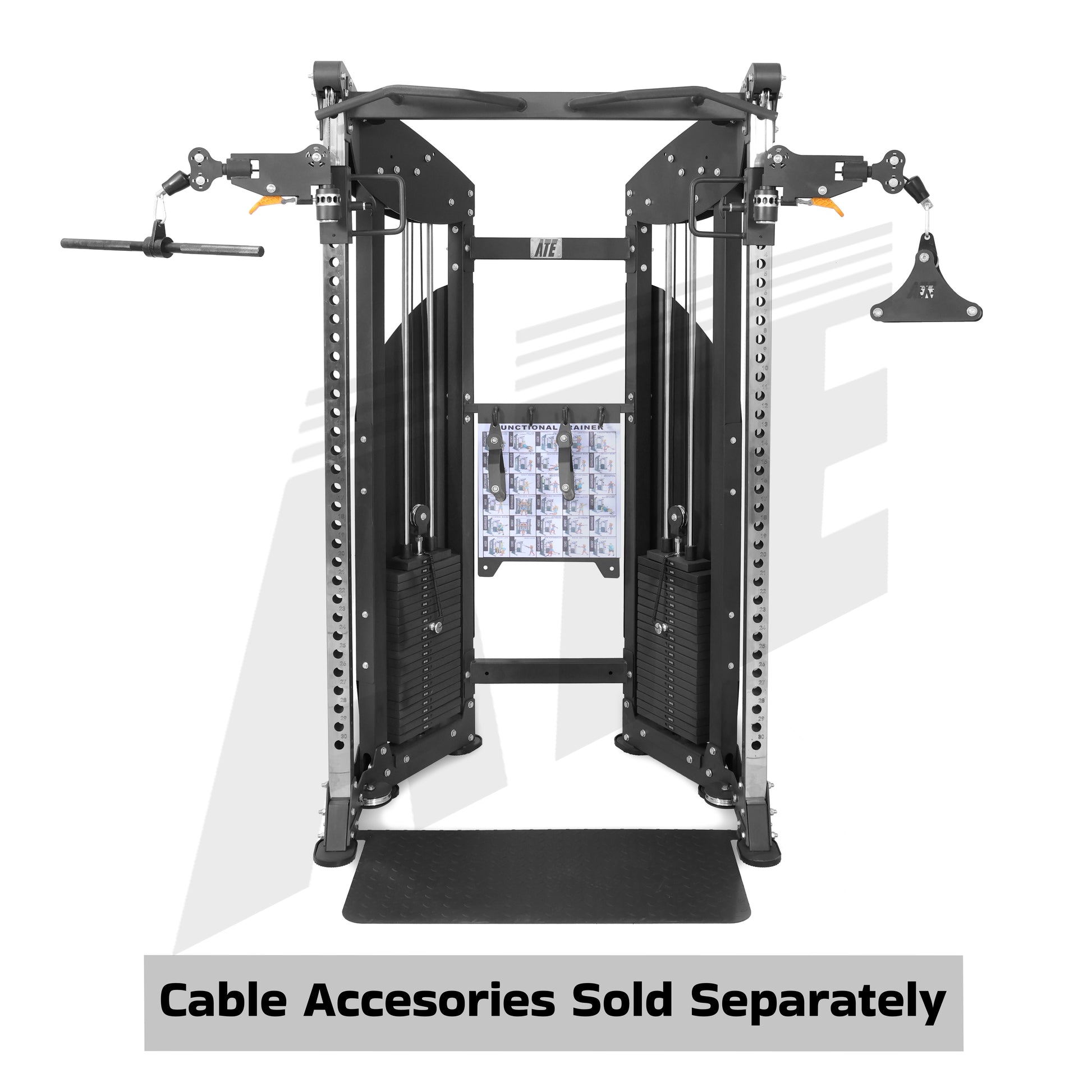

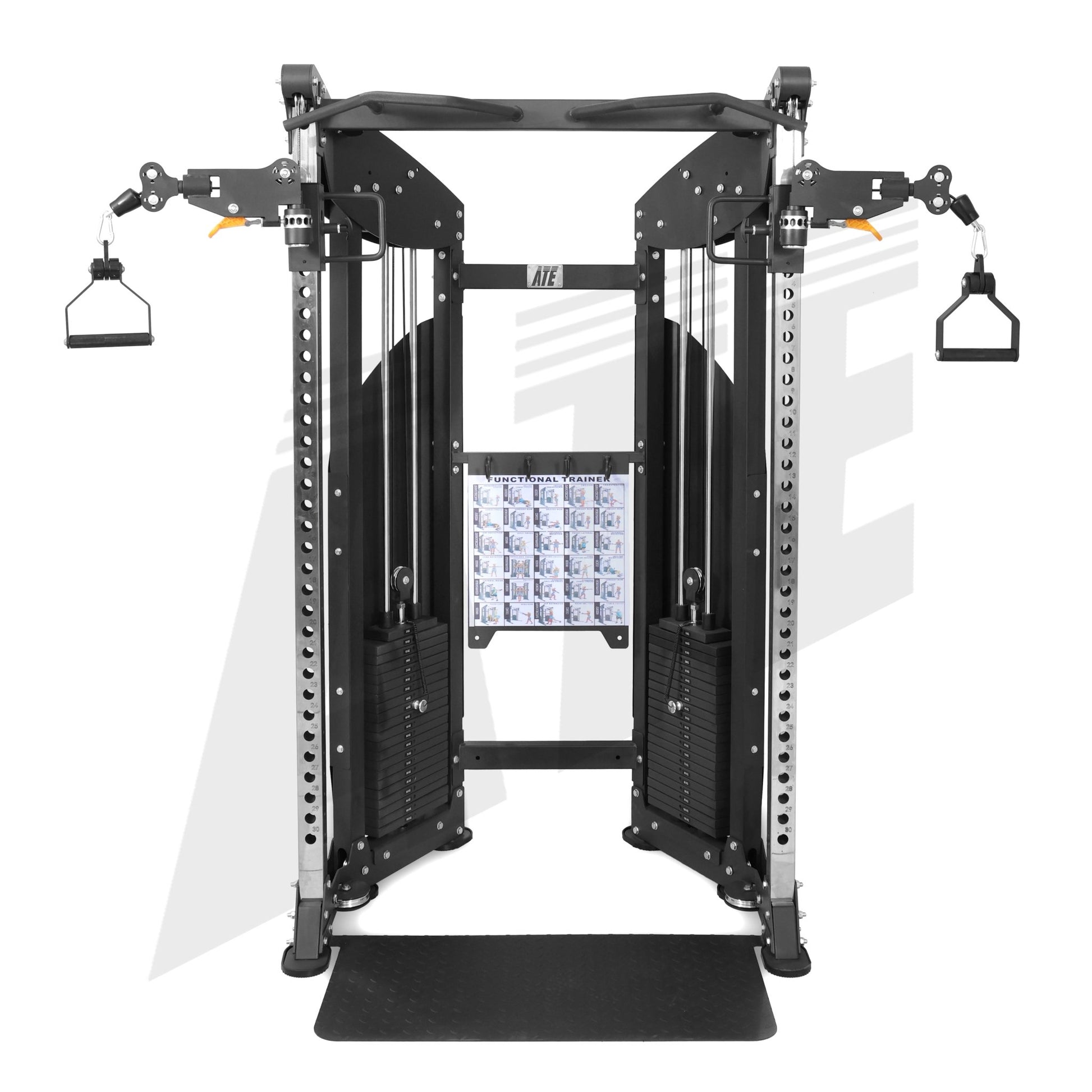

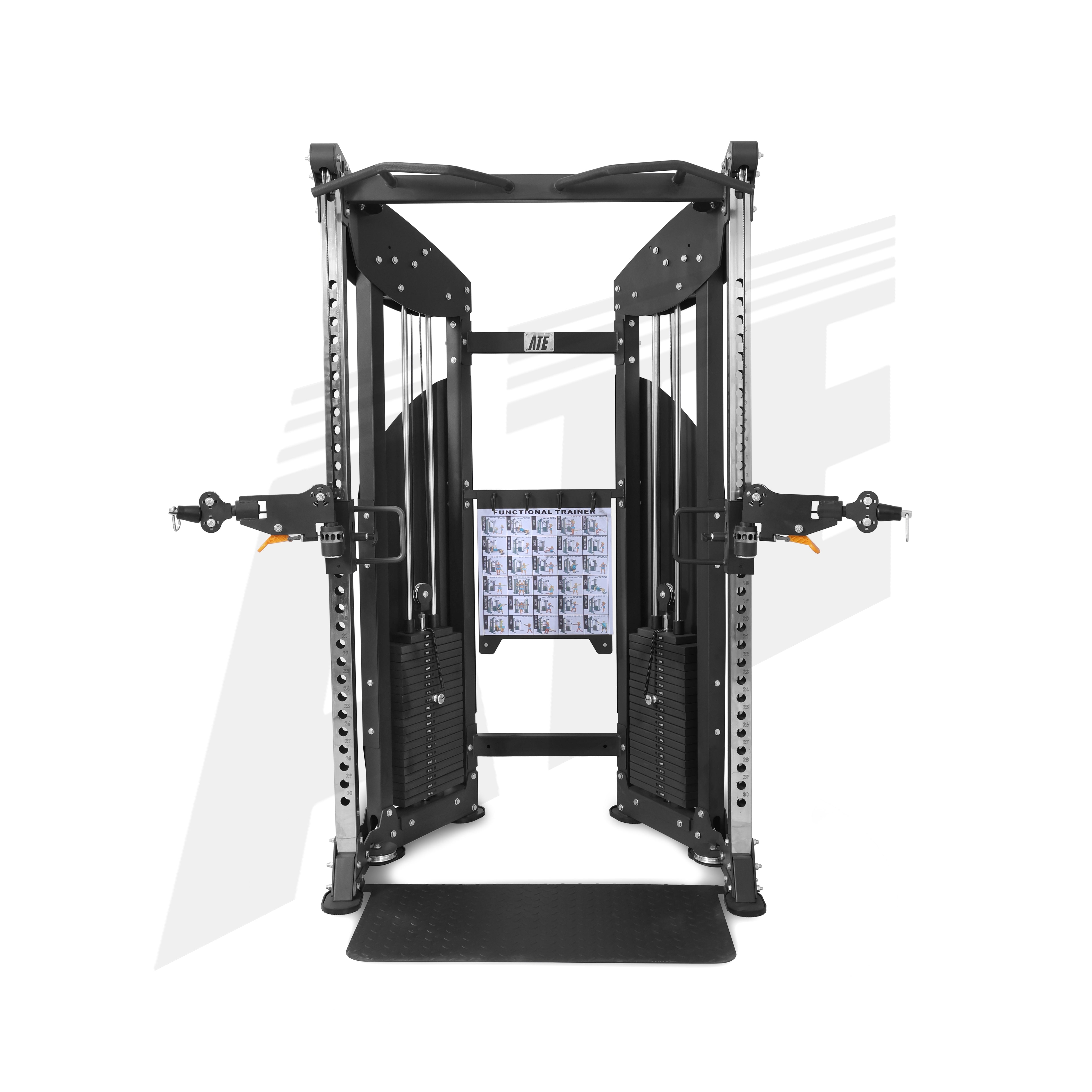

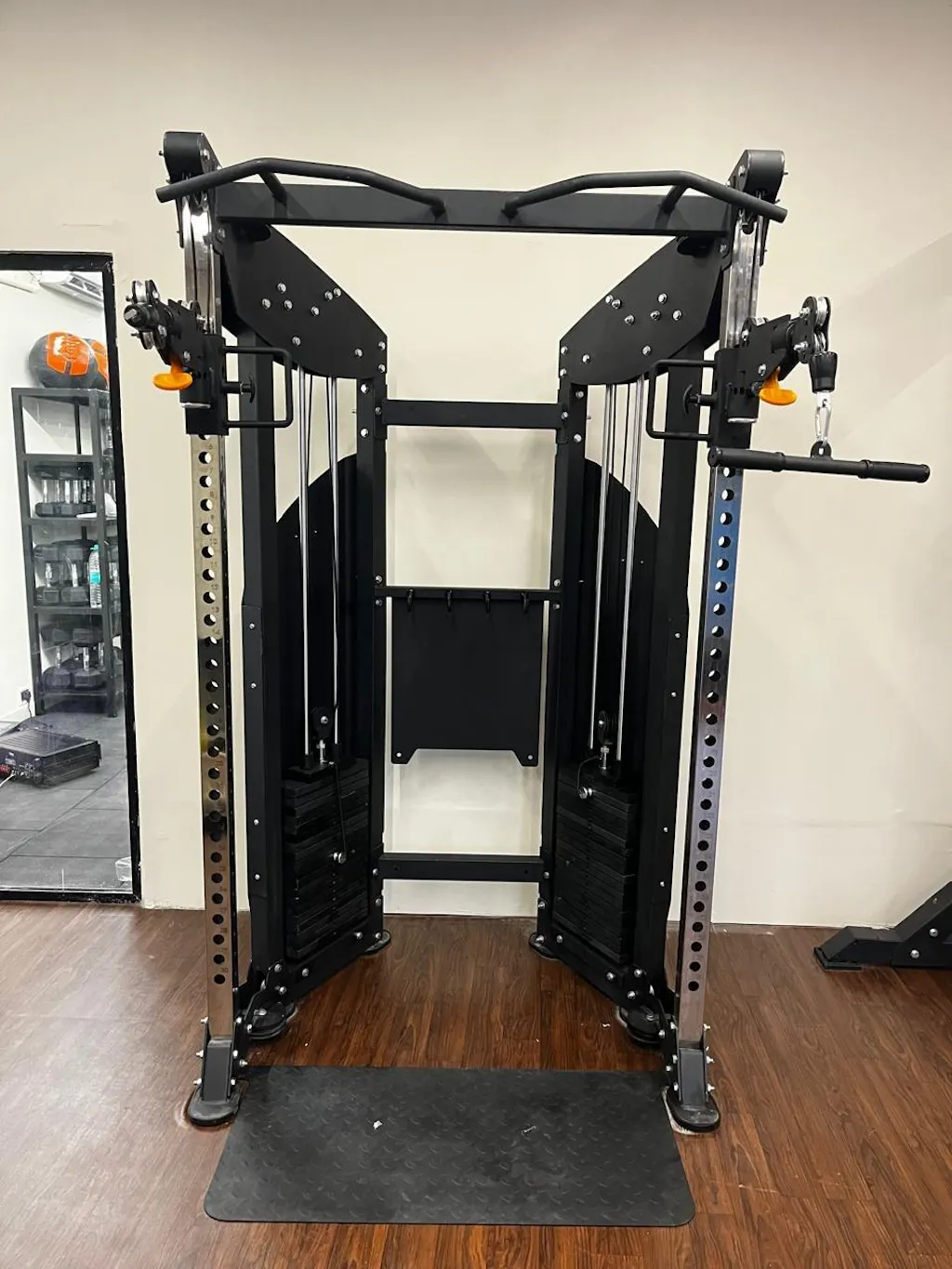

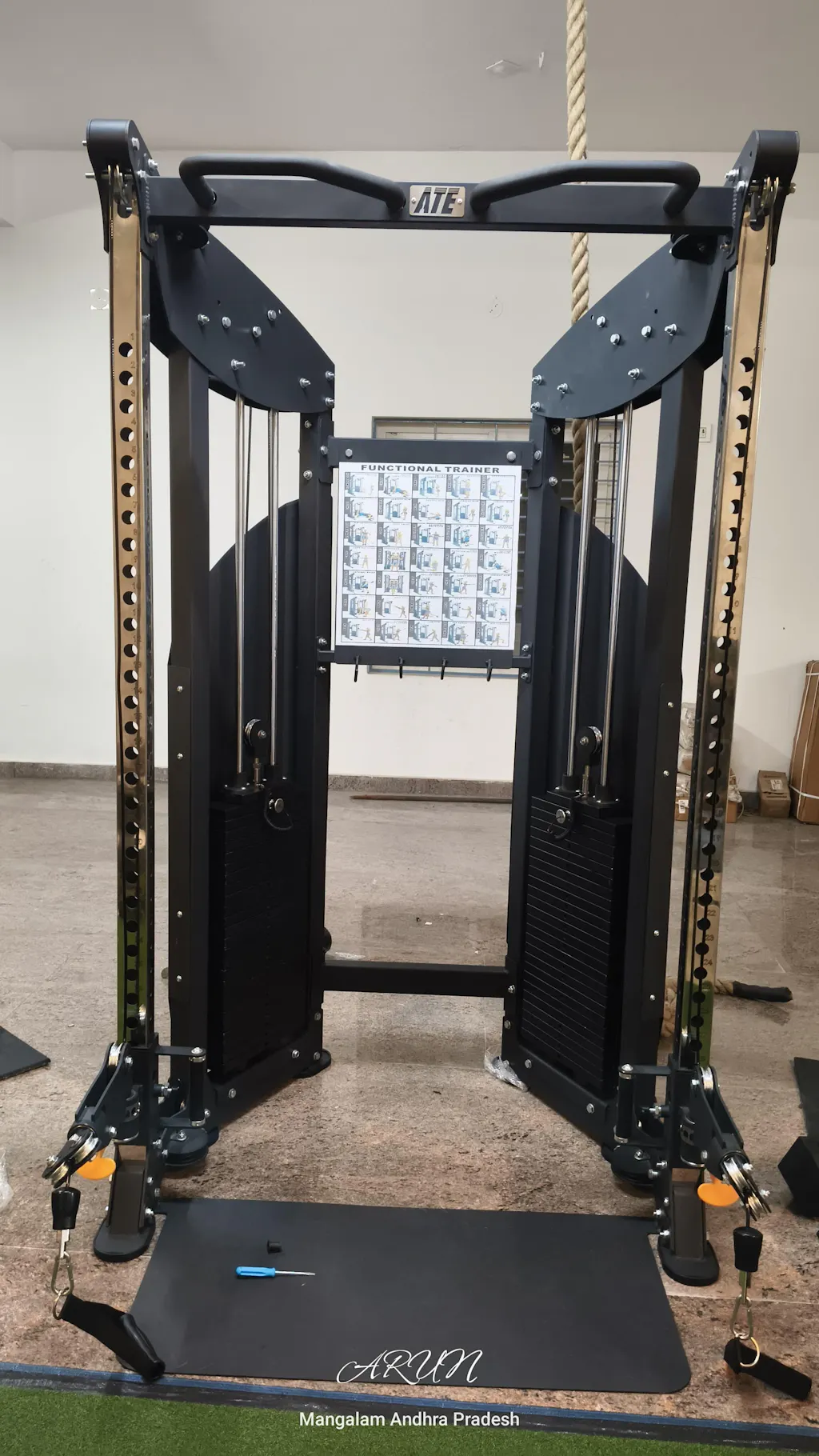

ATE Functional Trainer X1 Pro — Dual-Stack Cable Machine
Compact & Versatile Cable Training Solution
The ATE Functional Trainer X1 Pro is a compact yet powerful multi-functional cable machine designed to fit seamlessly into any training space — measuring just 47″ x 32″. Built for versatility, it supports a wide range of cable-based exercises with 30 adjustable pulley positions and dual weight stacks offering up to 100kg each (customisable to 130kg), delivering a combined resistance of 200kg at a 2:1 pulley ratio — meaning 50kg feels like 25kg for smooth, controlled movements.

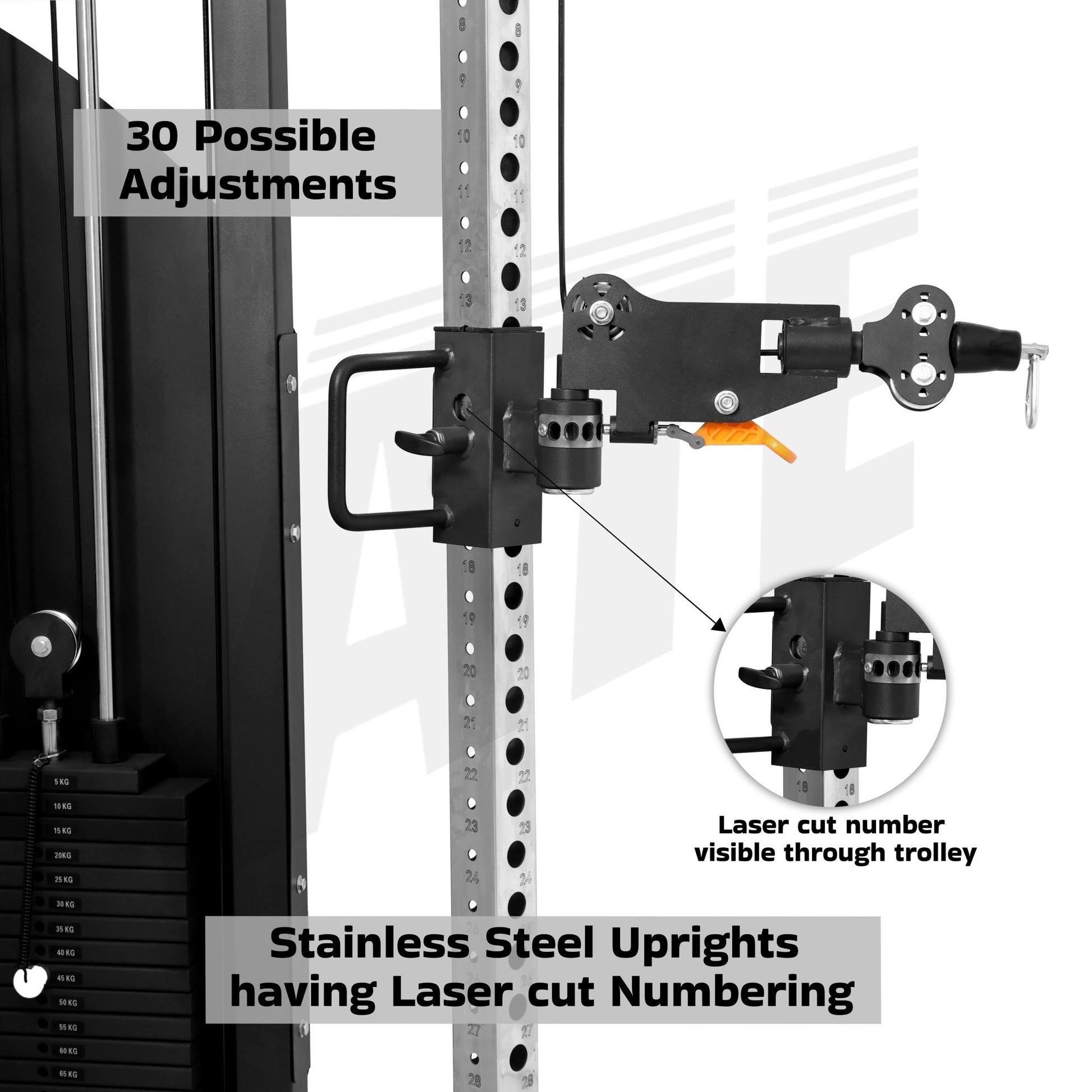

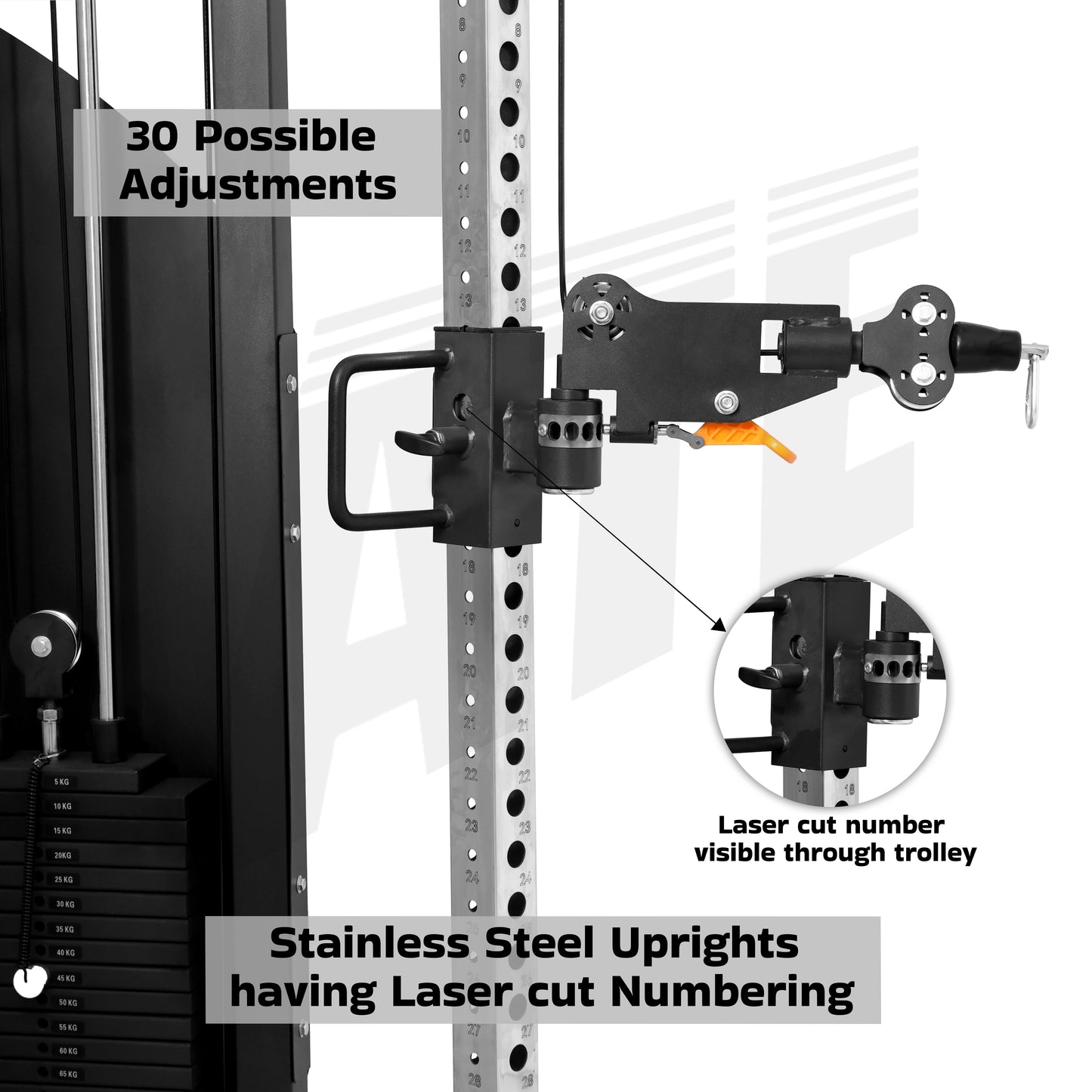

Engineered for ease of use, the lightweight, one-hand adjustable trolley glides effortlessly on stainless steel uprights. Each upright is precision-crafted with laser-cut numbering and a plastic inner lining for reduced wear and enhanced durability.
Built for elite performance, the X1 Pro features CNC-machined pulleys and custom high-grade bearings for ultra-smooth, quiet operation and consistent resistance every rep. Outfitted with 1500kg-rated Japanese cables and solid chrome-plated guide rods, it ensures minimal friction and maximum durability. The precision-calibrated weight stack, adjustable in 5kg increments, supports progressive overload, while a magnetic selector pin enables fast, secure weight changes during training.
Premium Features of the Functional Trainer X1 Pro
30 Cable PositionsWith dual weight stacks (100kg standard, upgradeable to 130kg each).

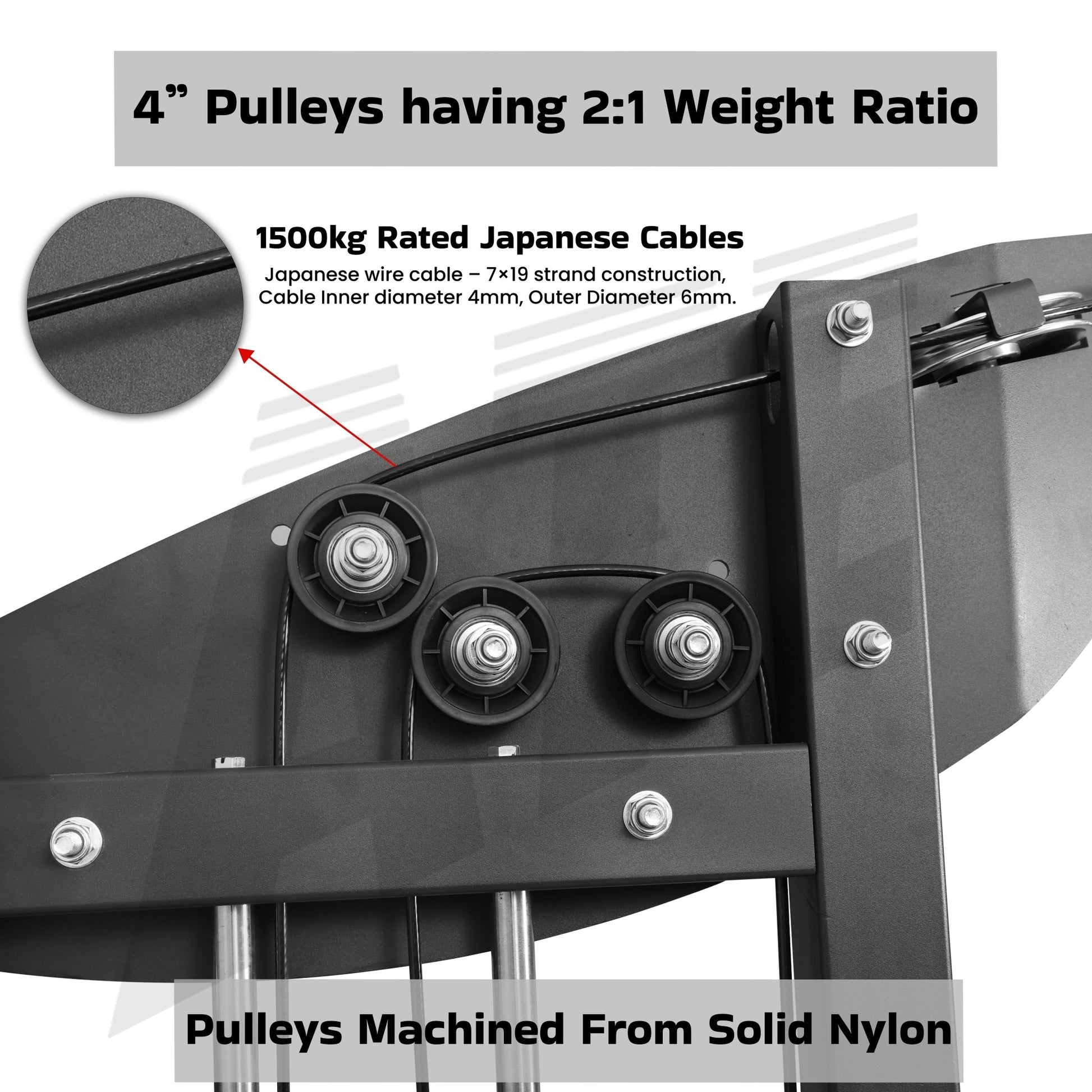

4″ Pulleys, 2:1 RatioSmooth resistance and safer movement control.

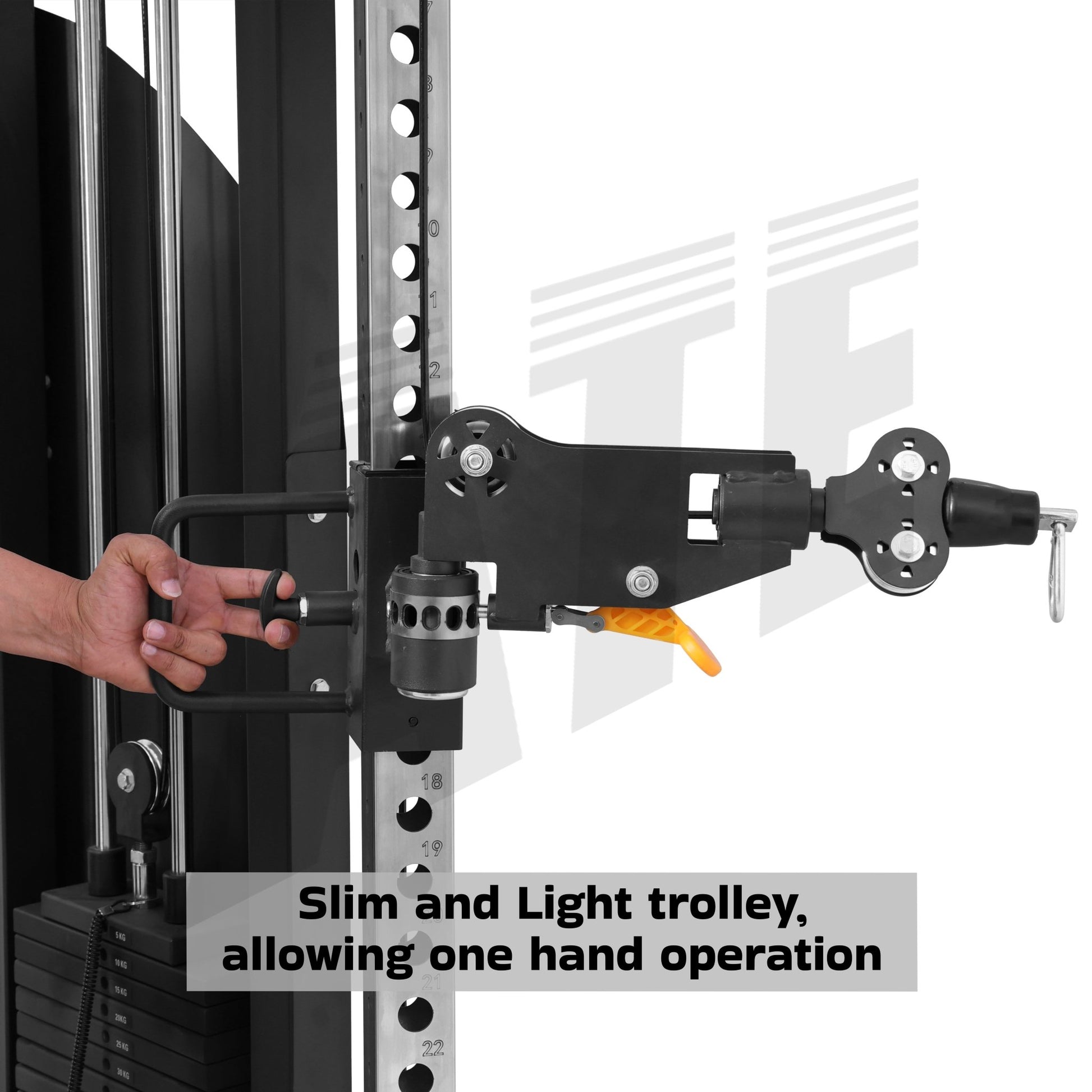

Slim, Lightweight TrolleyEasily adjustable with one hand.

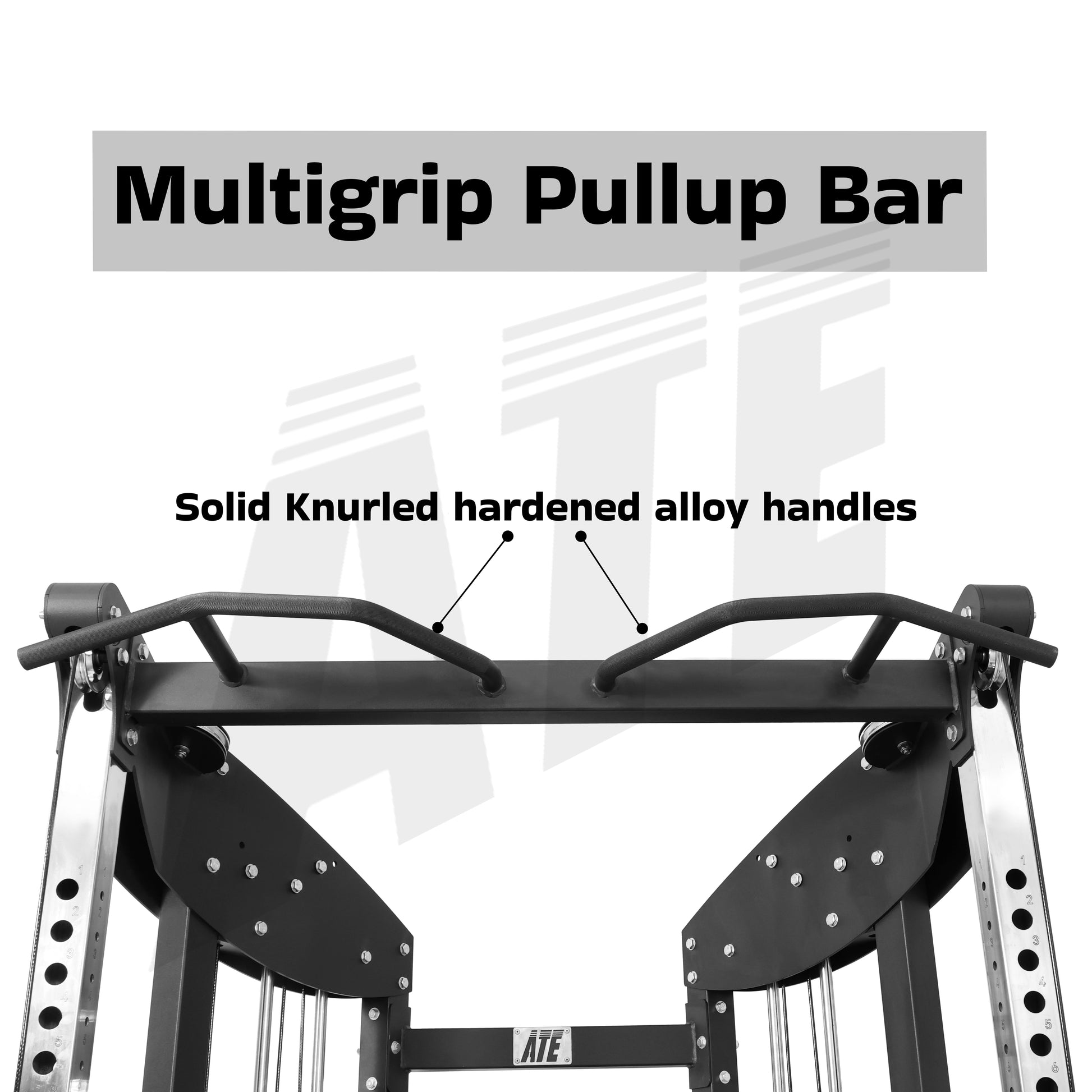

Multi-Grip Pull-Up Bar32mm solid steel with knurling for a secure grip.

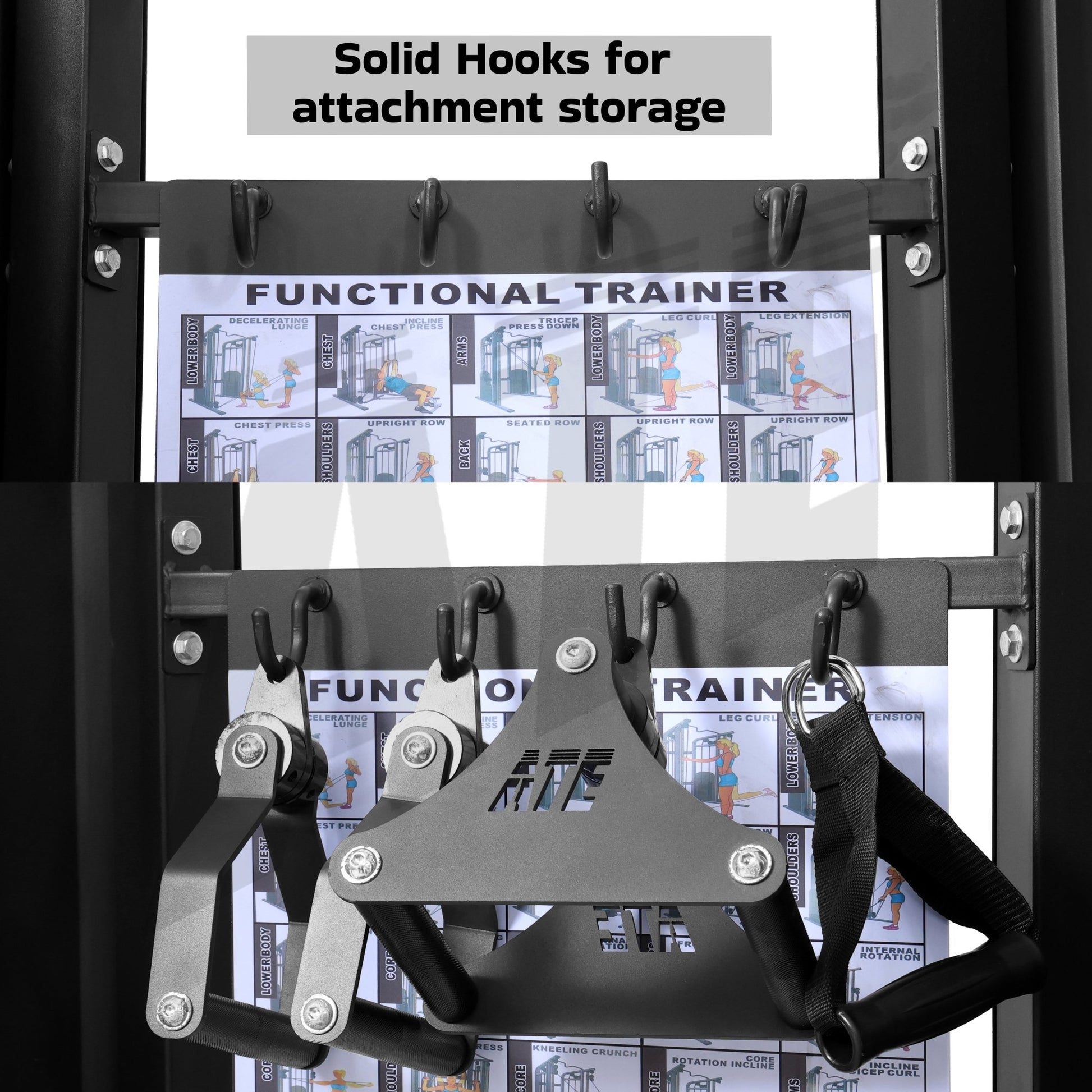

Heavy-Duty Steel HooksOrganised storage for accessories.

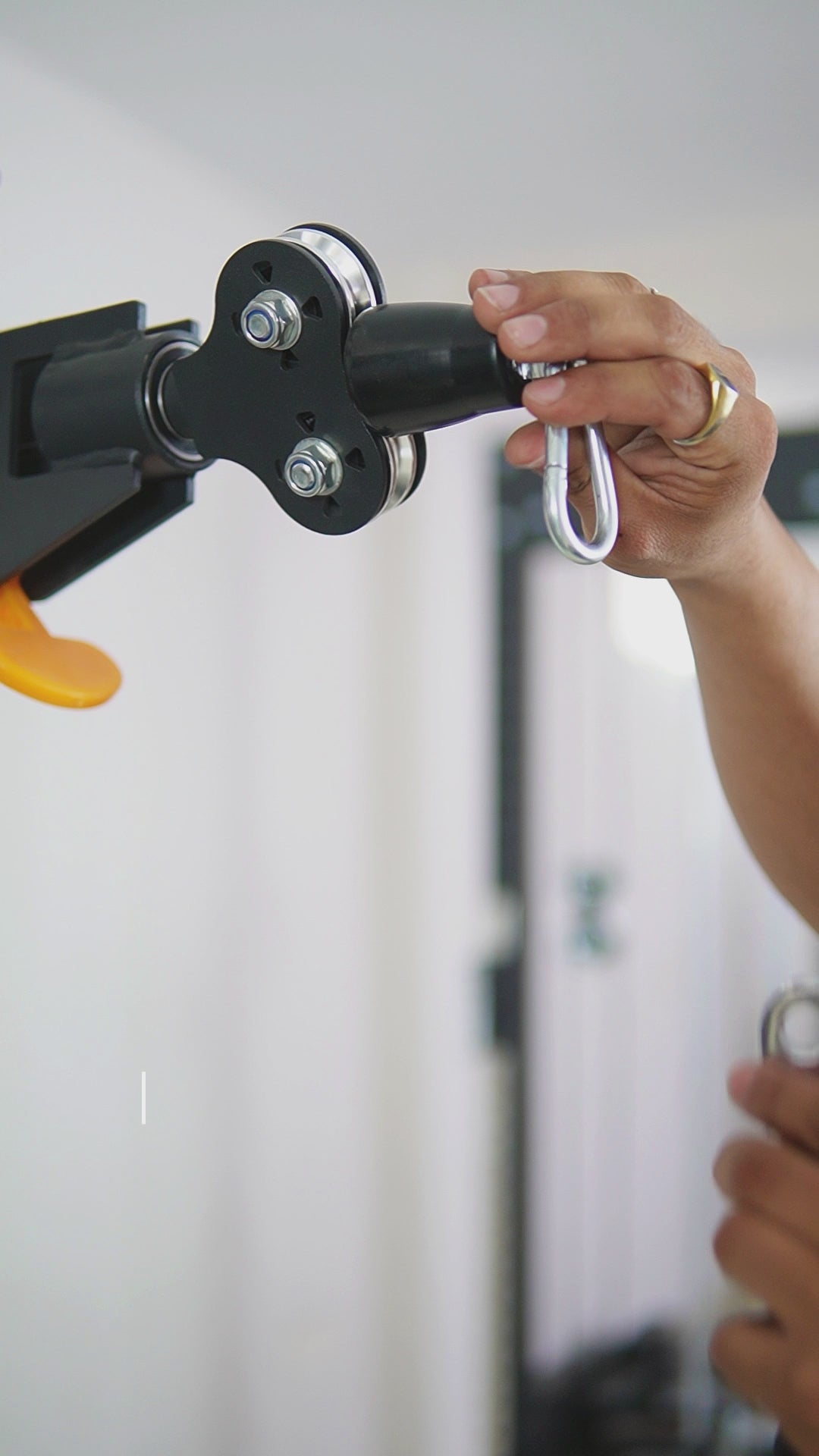

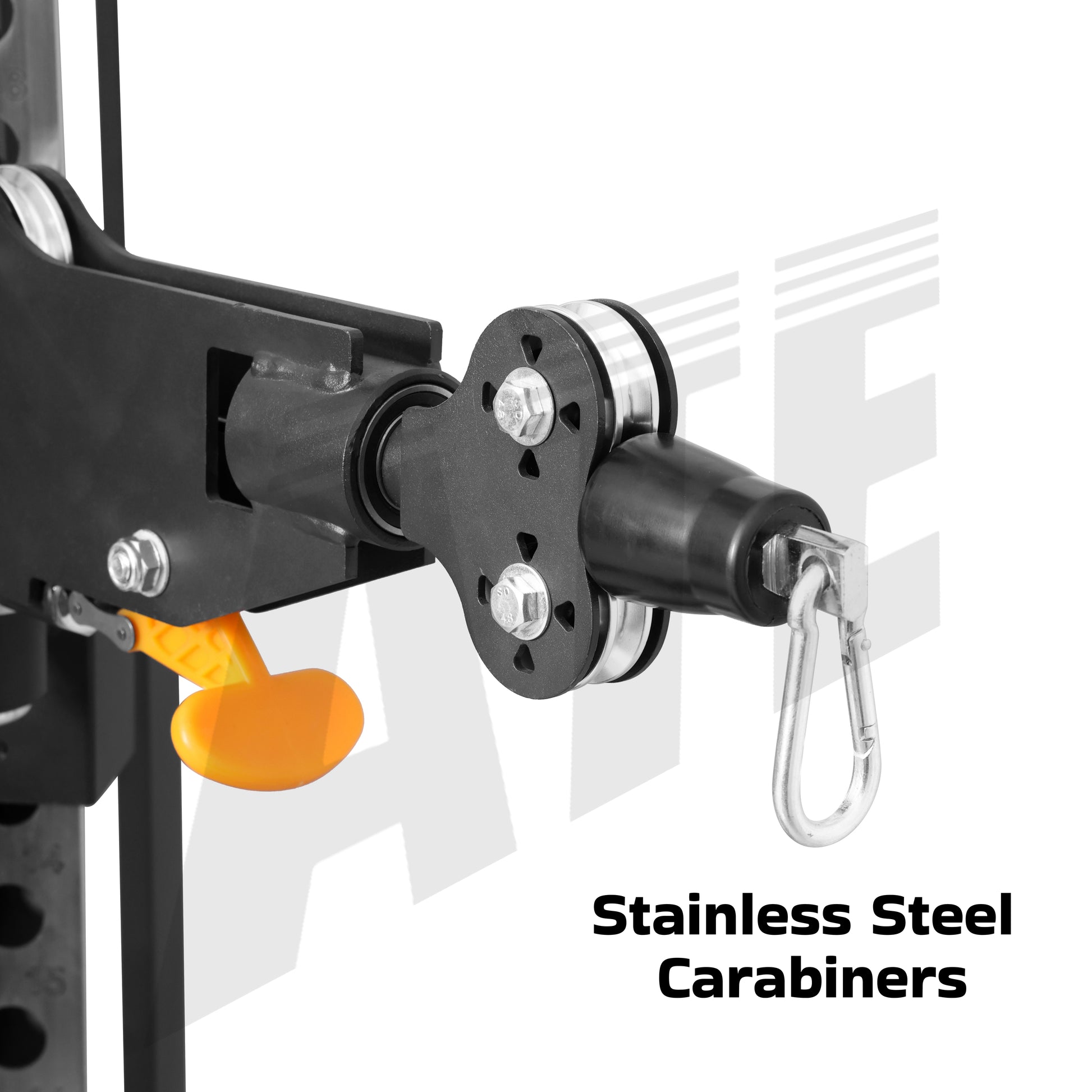

Stainless Steel CarabinersReliable and rust-resistant.

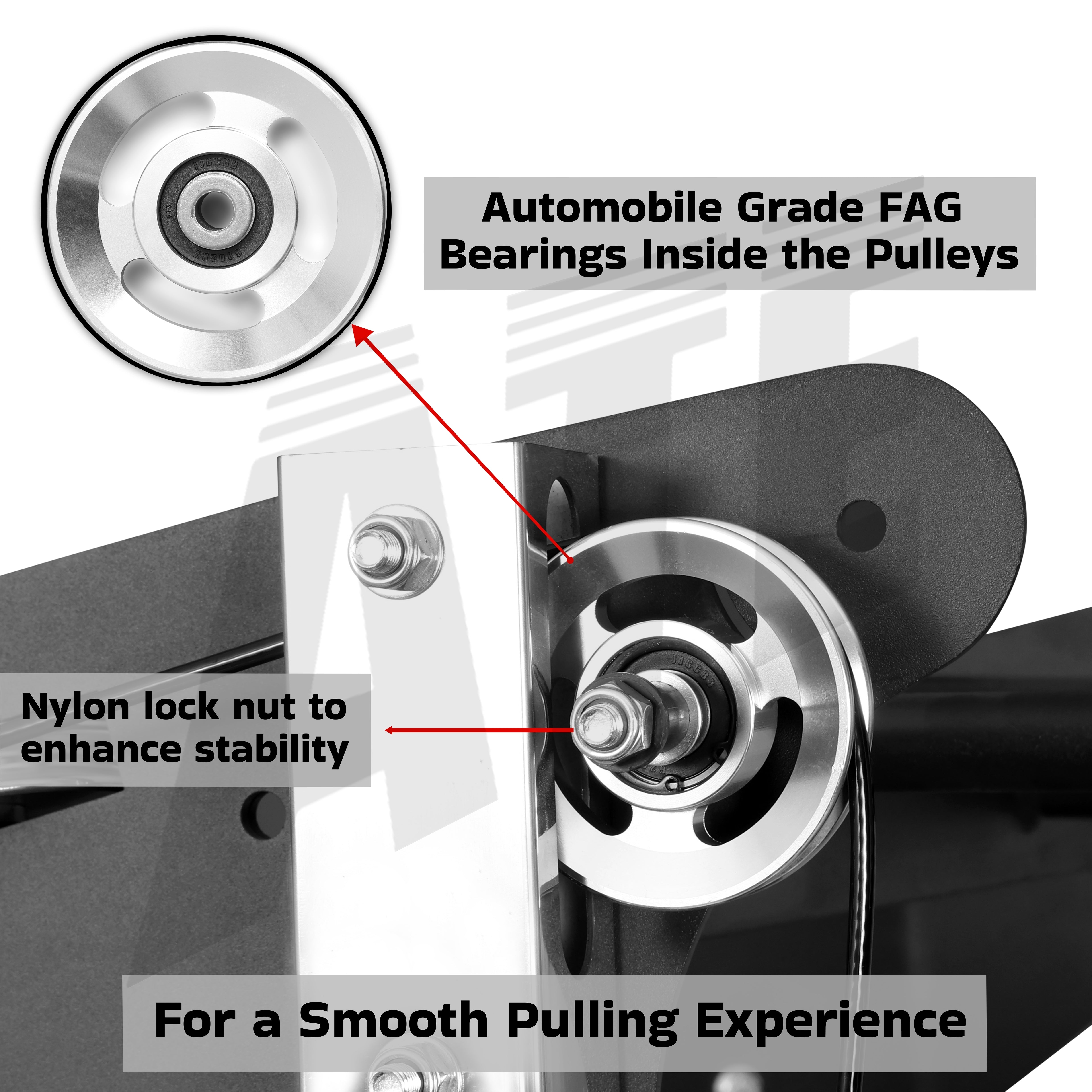

Automobile-Grade BearingsFAG bearings and CNC-machined solid components for ultra-smooth motion.

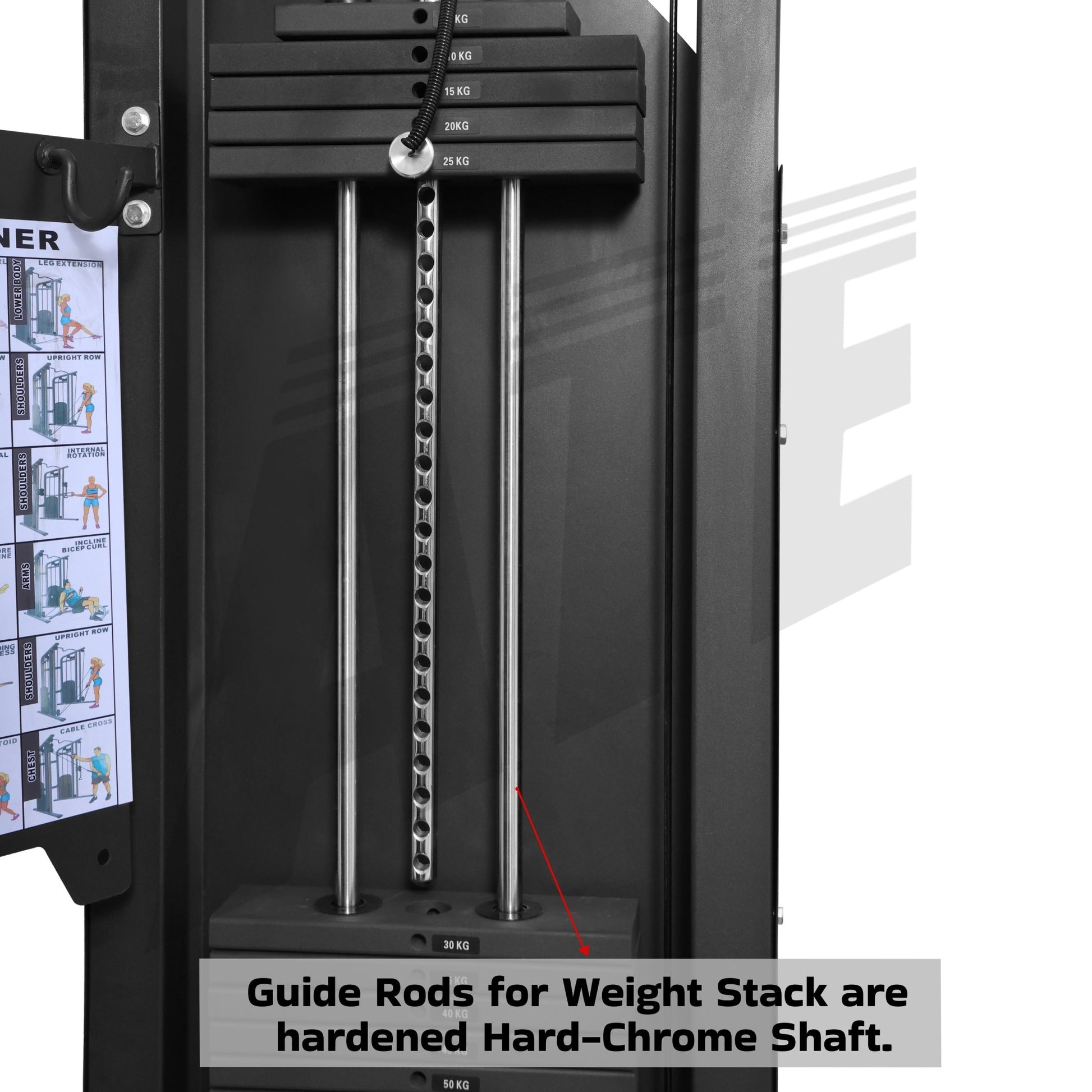

Hard-Chromed Guide RodsSolid steel guide rods connect the weight stacks for a longer service life.

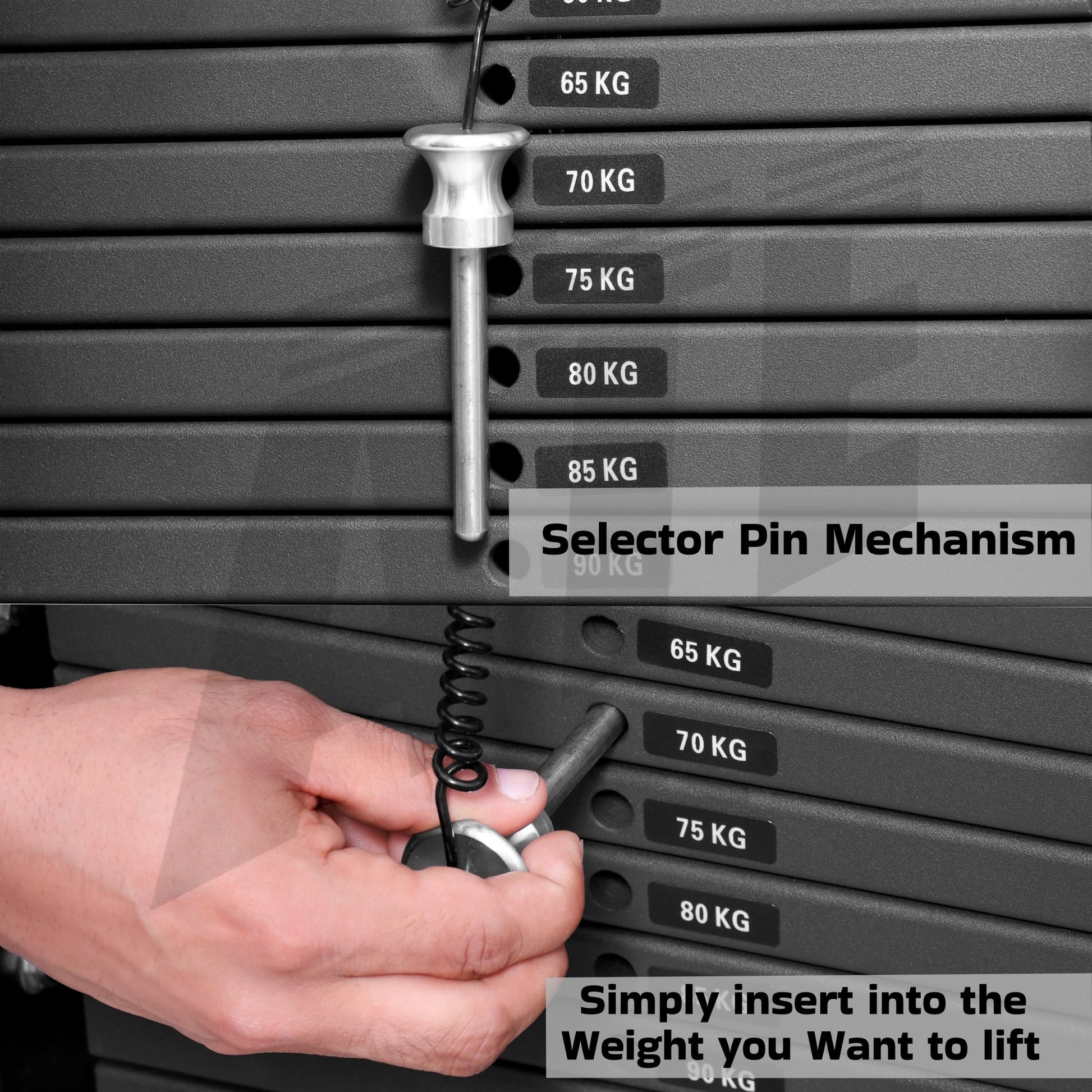

Magnetic Selector PinA magnetic locking mechanism for secure placement, tethered to the stack to prevent loss during workouts.
Warranty Information: 10-year structural warranty, 5-year warranty on pulleys and 6 months on cables & upholstery (subject to usage and wear).
Specifications:

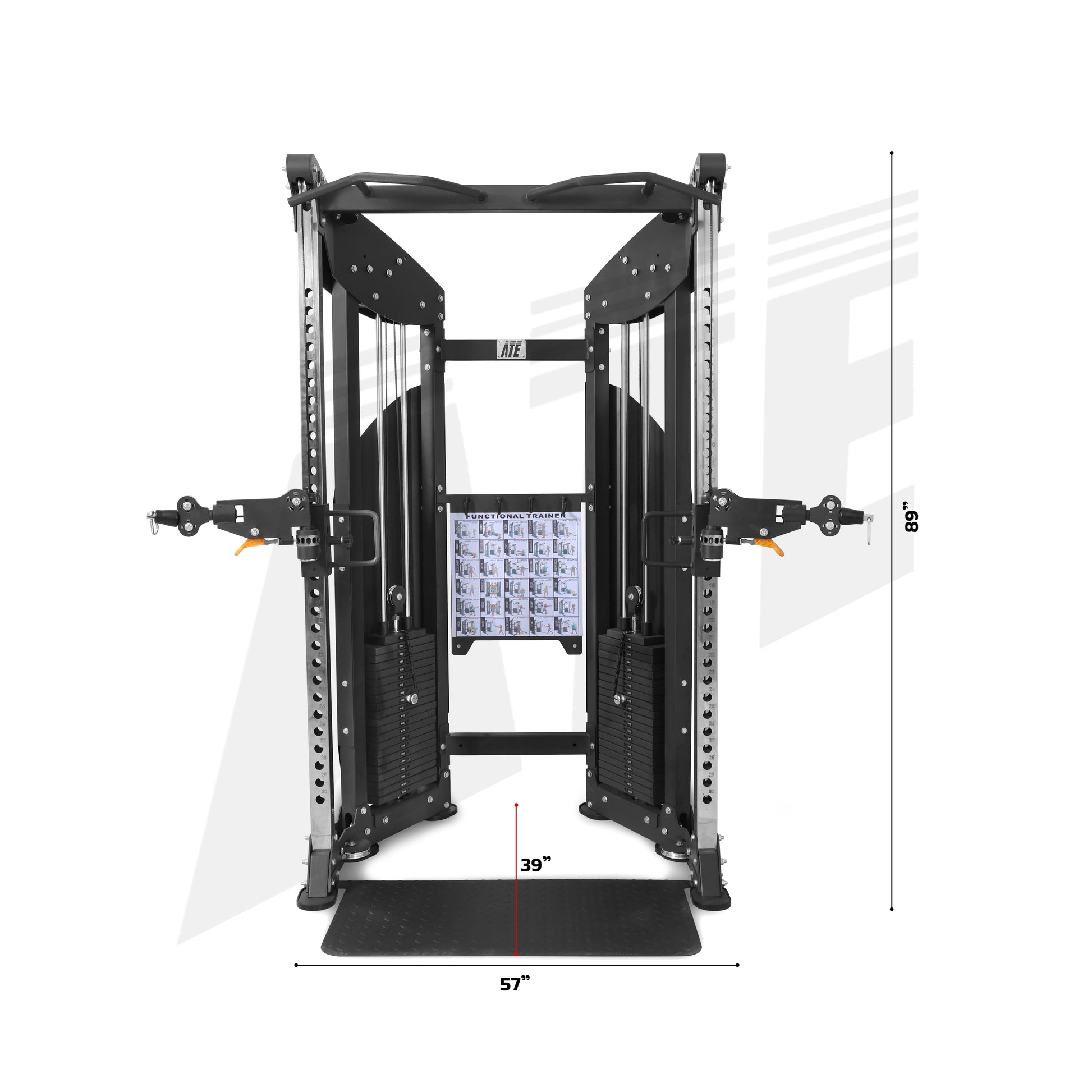

| Dimensions (L x B x H) | 47″ x 32″ x 82″ |
| Product Net Weight | 390kg |

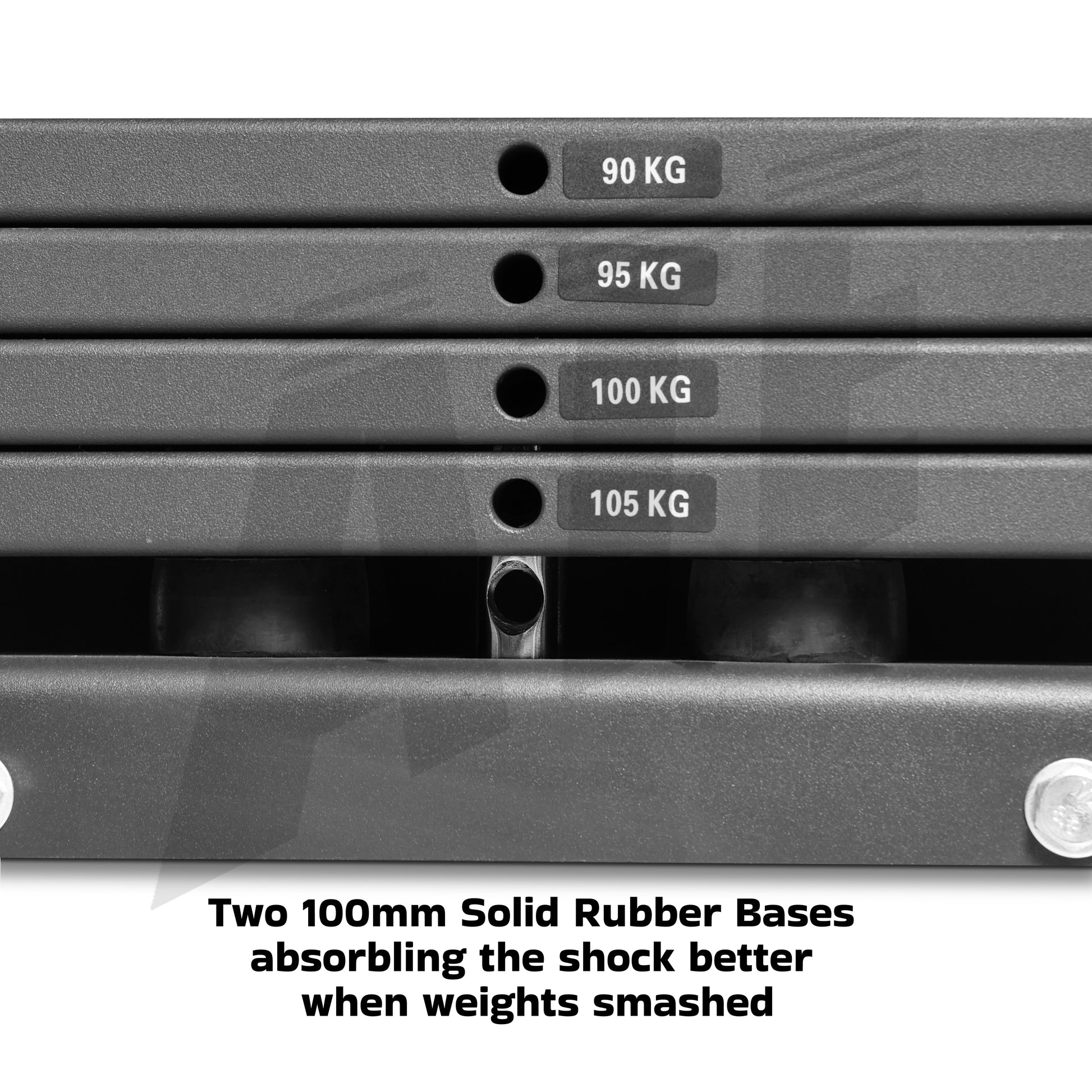

| Weight Stack | 100kg + 100kg (upgradeable to 130kg + 130kg) |
| Pulley Ratio | 2:1 (50kg feels like 25kg) |
| Cable | Japanese 7×19 wire, 4mm inner / 6mm outer (1500kg rated) |
| Pulley Material | Aluminium / Nylon, CNC-machined |
| Pull-Up Bar Diameter | 32mm |
| Weight Increment | 5kg |
| Guide Rods | Solid steel with hard chrome |
| Cable Positions | 30 |
Frequently Asked Questions:
What is a functional trainer and what can I do on it?
A functional trainer is a dual-cable machine with adjustable pulleys that lets you train almost any movement — chest presses, rows, lat pulldowns, curls, tricep pushdowns, core rotations, cable crossovers and more. The ATE X1 Pro has 30 cable positions and dual weight stacks, so two people can train at once or you can work both sides through a full range of motion.
What is the weight stack and the 2:1 pulley ratio?
The X1 Pro has dual weight stacks of 100kg each (upgradeable to 130kg each) for a combined 200kg, adjustable in 5kg increments. The 2:1 pulley ratio means the resistance you feel is half the stack weight — so 50kg selected feels like 25kg at the handle — giving smooth, controlled movement and a longer cable pull, ideal for functional training.
How much space does the Functional Trainer X1 Pro need?
It's compact for a dual-stack trainer, with a 47″ x 32″ footprint (82″ tall), so it fits into home gyms and studios where a full cable crossover wouldn't. Despite the compact size it weighs 390kg for excellent stability.
How smooth and durable is it?
Very. It uses CNC-machined pulleys with automobile-grade FAG bearings for ultra-smooth, quiet operation, 1500kg-rated Japanese cables, solid chrome-plated guide rods, and a one-hand adjustable trolley on stainless steel uprights with plastic inner lining to reduce wear. A magnetic, tethered selector pin makes weight changes fast and secure.
Which weight-stack option should I choose?
The standard 100kg + 100kg option suits most home and studio users, while the 130kg + 130kg upgrade is best for stronger lifters and commercial floors who want maximum resistance. Both share the same frame, pulleys and 2:1 ratio — you're simply choosing how much stack weight you need.
What warranty does the X1 Pro carry?
It comes with a 10-year structural warranty, a 5-year warranty on the pulleys, and 6 months on cables and upholstery (subject to usage and wear). It's manufactured by Anand Track & Field Equipment Pvt. Ltd. in Meerut, India.
Customer Reviews
The biomechanics and overall feel of the Functional Trainer X1 Pro are excellent. The movement feels smooth and natural during workouts, and the machine remains very stable even under heavy usage. Definitely one of the better commercial fitness products we have purchased.
The biomechanics and overall feel of the Functional Trainer X1 Pro are excellent. The movement feels smooth and natural during workouts, and the machine remains very stable even under heavy usage. Definitely one of the better commercial fitness products we have purchased.
We have been using the Functional Trainer X1 Pro daily in our gym for several months and it has performed flawlessly so far. The movement remains smooth, the frame feels very sturdy, and maintenance requirements have been minimal even with heavy commercial usage.
ATE has done a fantastic job with the Functional Trainer X1 Pro. Members constantly compliment the smooth movement, comfortable ergonomics, and premium feel of the equipment. The finishing and attention to detail are noticeably better than many competing brands.
Very sturdy construction and outstanding finishing on the Functional Trainer X1 Pro. The equipment feels heavy-duty and reliable, which is exactly what we were looking for in a commercial gym environment. Highly satisfied with the quality and overall performance.
The delivery time depends on the location of the consignee. The standard shipping time is approximately 8-10 days after the order has been placed.
Yes, we do delivery pan India
Shipping is handled by our expert logistics partners who ensures timely and safe delivery pan India. Different delivery locations are serviced by different logistics partners considering the delivery times across multiple partners.
Installation is done by our team of expert technicians who are located across the country. The technician located nearest to your delivery pin code will be scheduled for installation once the goods have been delivered.
We offer a wide range of commercial and home gym equipment including strength machines, functional trainers, barbells, squat racks, benches, rowers, treadmills, and more.
Yes, our equipment is designed with commercial-grade durability and safety, making it perfect for gyms, fitness studios, and training centers.
Absolutely. We stock spare parts for all our machines and offer easy ordering for components like cables, pulleys, pads, and pins etc.
Yes, flexible payment options and financing plans may be available. Please check at checkout or contact us directly.
